Screen Printing Machine

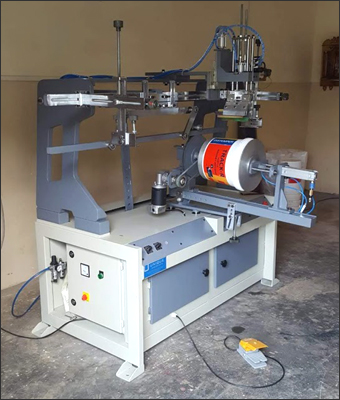

USP SERIES

Semi Automatic Screen Printing Machine for Cylindrical, Square Flat and Oval Article.

Features :



Variable Speed Control with VFD.

Suitable for Cylindrical, Oval, Flat & Conical Article.

Micro Adjustment Facility of “X”, “Y” and “Z” axis of Screen & Square Unit.

Air Inflation System for Thin Wall Container.

Minimum power consumption

Quick Change Over with Easy Adjustment in a Short Time.







PARAMETERS
Maximum Print Size
Power Requirement
Maximum Speed
Air Pressure
Machine Dimensions (Outline) mm
Weight
USP – 200
200mm Dia x 225mm Height
1 KW / 220 V AC, 1 Phase
1400 Impressions Per Hour
4 to 5 kg / Cm2
(L)1400x(W)1400x(H)1675
580 kg Approx
USP – 300
300mm Dia x 350mm Height
1 KW / 220 V AC, 1 Phase
600 Impressions Per Hour
4 to 5 kg / Cm2
(L)1575x(W)1525x(H)1675
630 kg Approx

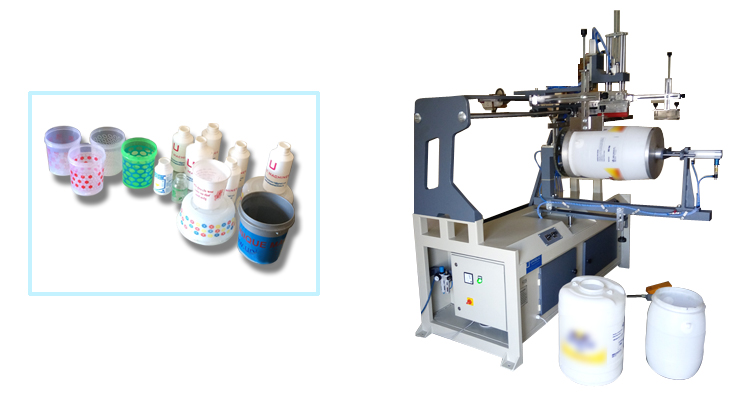

UASP SERIES

Fully Automatic Mechanical Screen Printing Machine

Fully Automatic Screen Printing Machine for Cylindrical, and Oval Article.



Features :

Automatic Loading & Unloading Containers.

Variable Speed Control with VFD.

Quick Change Over with Easy Adjustment in a Short Time.
PARAMETERS
Maximum Print Size
Power Requirement
Maximum Speed
Air Pressure
Machine Dimensions (Outline) mm
Weight
UASP – 200
200mm Dia x 300mm Height
0.75 KW / 220 V AC, 1 Phase
1800 Impressions Per Hour
6 kg / Cm2
(L)1900x(W)1400x(H)1675
600 kg Approx
USP – 500
